Estimate the Age of People From Photos with Convolutional Neural Networks

In this project, our task was to design and train a deep age estimation network that will accurately predict age of people, whose ages vary between 1 and 80, from their 91x91 facial grayscale images. Since we were not allowed to use any wrappers like tflearn or keras, we have implemented the convolutional block, residual block and pooling operations from sctrach and designed our own network by using these blocks. As for the dataset, we have used a downsampled subset of UTKFace dataset, provided by the instructor of the course. Significant amount of experiments are conducted all of which are runned on 2 NVIDIA GeForce GTX 1080 Ti using Tensorflow.

While fine-tuning, greedy approach is followed to limit the number of experiments, i.e. once there’s a winner in a current experiment, the following experiments are conducted by fixing the winner configuration for current hyperparameter and changing another hyperparameter in the next experiments one at a time. In our preliminary experiments, we observed that our models converge around 50 epochs and due to high number of experiments, we fixed the number of total epochs to 50 till we apply early stopping scheme. Until further investigation of each hyperparameter, the following initial values are used due to avoid dramatic oscillations in the learning process: batch size is 128, learning rate is 0.001, learning rate decay factor is 0.1, learning rate decay step is 860 (corresponds to 20 epochs), and initializer is Xavier. Note that these parameters are also investigated and fine-tuned in the next steps and are used at the beginning only for stable comparison reasons of our models in the architecture selection step.

1. Architecture Design

We first began by delving into all the possibilities of convolution, pooling, and dense layers and tried various architectures. Our approach was to start experimenting with number of convolution operations and the position of pooling layers between those operations. Therefore, we have created several different architectures, as shown in Table 1, combining the positions of consecutive convolution and pooling operations.

First, we compared models by holding the filter number and filter size the same in terms of their validation mean-absolute-error scores. As an intuitive approach, we generally preferred an increasing number of convolutional filters as we add more convolutions. The reason is that we expect our model to learn more complex representations of the input image as we go deeper, therefore, tried to capture more of these details with higher number of filters. After that, we picked some models that outperformed the rest, considering the MAE score along with the model complexity.

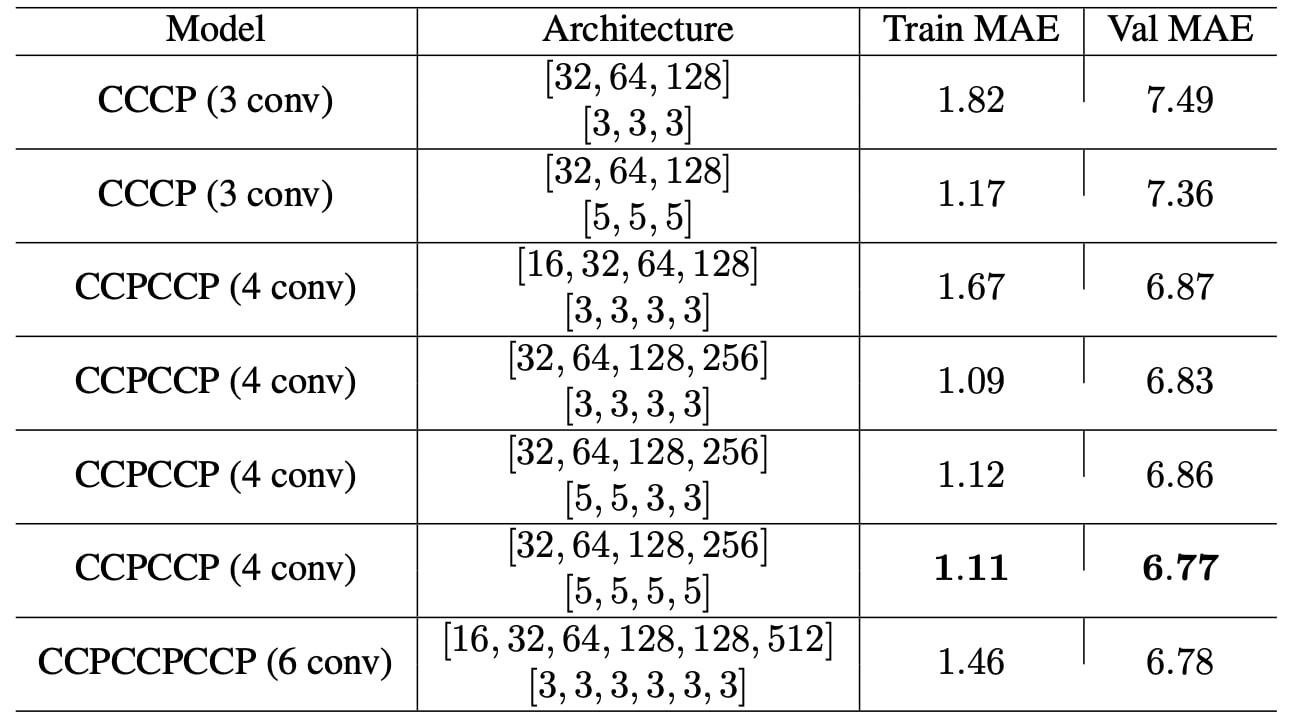

Table 1. Designed convolutional neural network models with their mean-absolute-value results. Letters ’C’ and ’P’ denote ’Conv2d’ and ’MaxPool2d’ operations respectively. All pooling operations are identical as of size 2x2 and stride 2. Number and size of convolutional filter information wrapped in list representations, each element denoting the convolution operation parameters in respective order. For instance, [32,64,128] and [3,3,3] implies there are 3 convolutional operation consisting of 32, 64 and 128 number of filters where each has size 3x3.

Therefore, models with higher complexity but with slightly better MAE scores are also eliminated. Then we have experimented by changing number of filters and their size for the pre-selected models in the previous step. According to our experiment result in this step, models with 4 convolutional blocks generally performed better than the ones which have less or more convolutional operations. Subsequently, we focused our experiments more on this architecture and investigated with further different filter configurations. As a result, we obtained the best parameter selection as with 4 convolutions consisting of filter numbers of 32, 64, 128, and 256, each has filter size of 5x5, corresponding to the sixth row of Table 1.

At some point, we observed that deep architectures overfit the training data quite easily; however, they do not convey much of the learned representation to the validation set. This was quite expected since we did not employ any regularization technique during the training period for this step. However, we decided to add residual shortcuts to our convolutional architecture in the hope that it will help the architecture perform better also in validation set when its depth is increased. Following the same architecture selecting approach as we did before, we experimented with even deeper models using residual units shown in Figure 1.

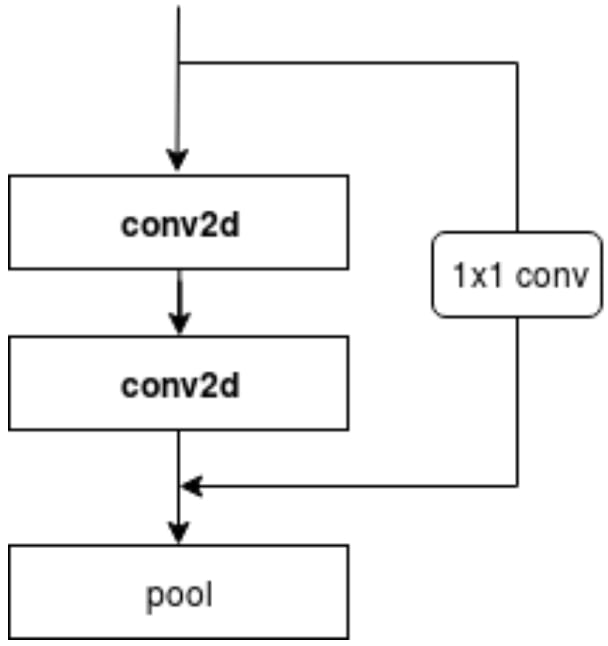

Figure 1. A Residual Unit

Although we constructed quite deeper models compared to our prior experiments, residual units did not contribute much in our case. Shortcut connections demonstrated some natural regularization behaviour as we can easily see the decrease between train and validation MAE scores shown in Table 2. Even if the models got deeper, overfitting trend was quite reasonable especially compared to the previous models that we experimented. On the other hand, they did not improve the validation MAE scores significantly, while introducing much more complexity as the number of parameters increases as they get deeper.

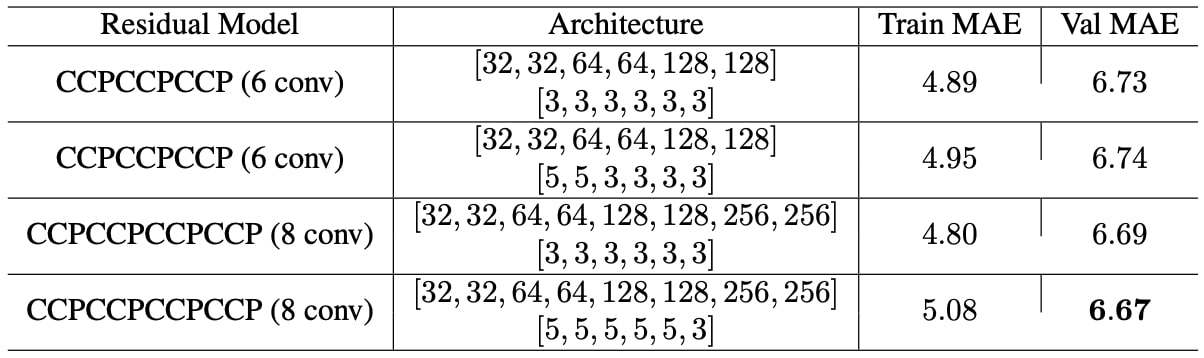

Table 2. Residual models designed with ’CCP’ residual blocks

Consequently, we decided to fine-tune the model in Figure 2 with a fairly simple structure and a reasonable initial validation MAE score.

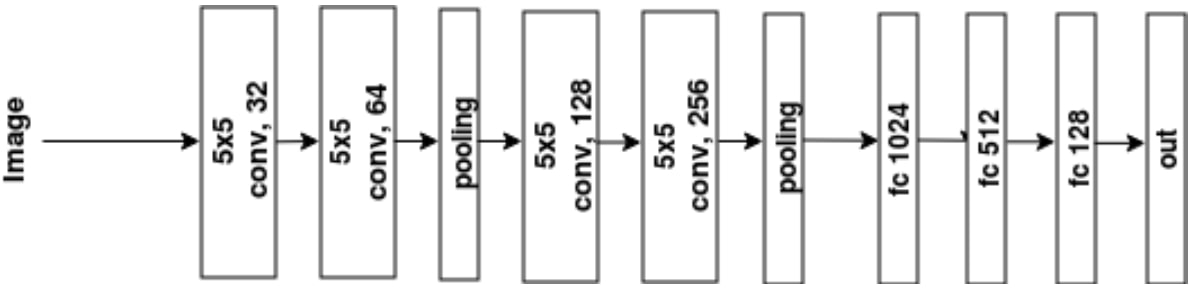

Figure 2. Final Architecture

2. Loss Function

We used mean squared error (MSE) for optimization:

where $y_i$ is the ground truth label, $\hat{y}_i$ is the predicted label for sample $i$, and $n$ is the mini batch size. Although evaluation of the model on both validation and test set are done in terms of mean absolute error (MAE), using MSE during training allows the model to penalize the incorrect predictions more as they get differ a lot from the ground truth.

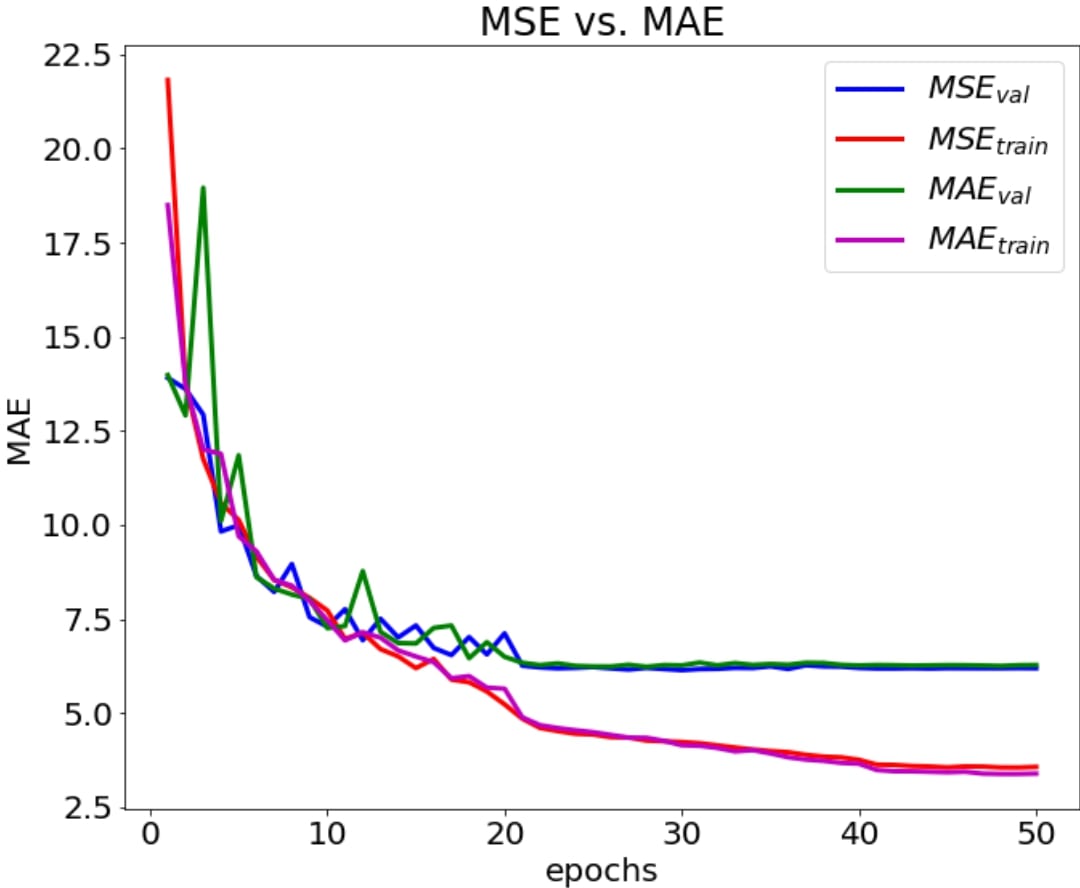

Figure 3. Mean absolute error (MAE) values over epochs of training with MSE loss and MAE loss

We show the benefit of using MSE by training both with MSE and MAE in Figure 3, where in the case of MAE the network does not perform as good as MSE: its MAE value on validation set (6.19) was slightly inferior to that of MSE (6.28). Please note that, MSE is used only for optimization during training. Throughtout the whole report, all decisions are made by inspecting the validation set MAE value at the end of training.

3. Effect of Initialization

In this chapter, we investigate the effect of Xavier, random normal, and additionally He uniform initialization for the network’s weights and filters. For the random normal initialization, we used tf.initializers.truncated normal rather then tf.initializers.random normal since in the former values more than two standard deviations from the mean are discarded and re-drawn. This is the recommended initializer for neural network weights and filters in Tensorflow.

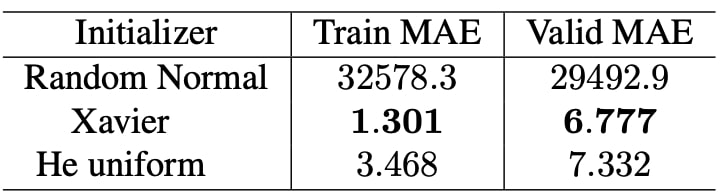

Table 3. Mean absolute error (MAE) values of different initialization methods on training and validation set after 50 epochs of training

From Table 3, it is seen that initialization with random normal is nonsense because other initialization methods are designed meticulously for deep neural architectures and therefore they perform far superior to random normal. Since He uniform is proposed 5 years after Xavier, we were expecting it to perform better than Xavier. However, this is not the case. Arguably, this may be because of our shallow architecture.

4. Learning Rate

Before further proceeding, we want to make sure that our learning rate is set properly. Therefore, we examined the effect of learning rate which is given in Table 4.

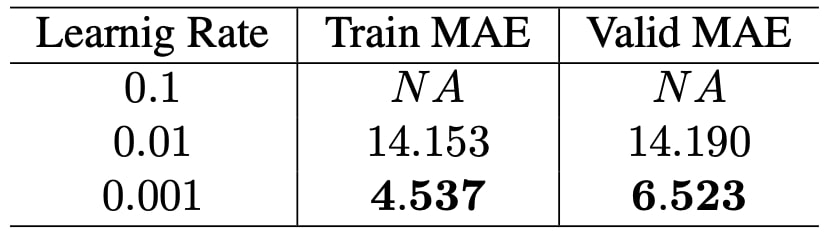

Table 4. Effect of learning rate on training and validation set in terms of mean absolute error (MAE)

Surprisingly, for learning rate 0.1, optimizer is not able to run. It gave nan as the training loss from the beginning of first epoch. We proceed our experiments by setting learning rate to 0.001 from now on. Note that all the experiments shown in Table 4 are performed using learning rate decay step as 860 which cor- responds to 20 epochs. This value is found by manual inspection.

5. Batch Normalization

Batch normalization (BN) is an effective way to reduce internal covariate shift, which increases the performance of model. Therefore, investigating its effect is a must in deep architecture training. Although applying BN before or after activation function is quite controversial, we followed the order proposed in this paper and applied it before the activation function. Thus, each convolution and dense layers is followed by a BN layer. It enhanced the performance approximately 14% by dropping the validation MAE to 5.856.

6. Regularization

We applied two types of regularization: l2-regularization and dropout. We finetune the dropout probability on each dense layer and then with the best performing configuration, we fine-tune the l2-regularization penalty, i.e. weight decay rate.

6.1. Dropout

Since we have three fully connected layers, our model is prone to overfit the training data. An effective way to prevent this is to use of dropout.

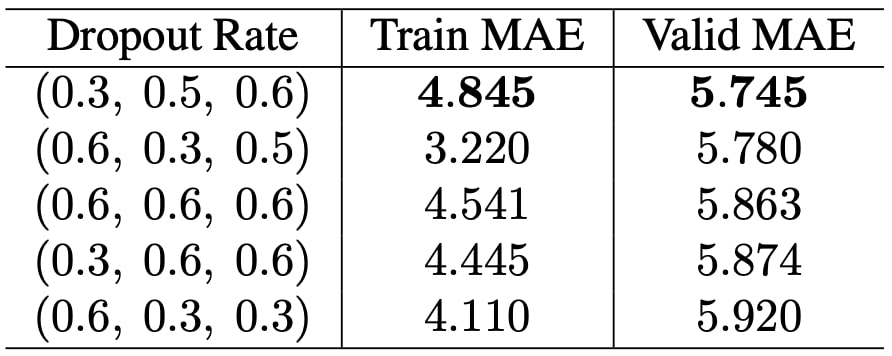

Table 5. Top 5 performing dropout rates given in the descending order of performance. Rates in each tuple represent the first, second and third dropout rate for the corresponding dense layers, respectively.

Firstly, we experiment with the same dropout rate for each three dense layer. We applied all dropout rates in the range [0.3, 0.9]. Among these seven option, the best performers are 0.3, 0.5, and 0.6. Then, we applied grid search for each three dense layer with these three values. Table 5 displays the results of top 5 performing rates. Unsurprisingly, high dropout rates perform better than low ones since the network memorize the training data and having high dropout rates forces network to forget some data coming from previous layers. Since (0.3, 0.5, 0.6) performed better than others, we choose it and proceed to next experiments.

6.2. L2-regularization

L2-regularization is not unique to deep learning architectures but it helps a lot by putting a restriction on each filter’s weights so that they are bounded and they are all around same values, i.e. some weights cannot be much higher than the others. We added l2-regularization to each convolution and dense layer. Then the loss function defined in chapter 3 becomes:

where $\lambda$ is the weight decay factor, $\beta_k$ is the $k^\text{th}$ weight matrix, and $p$ is the total number of weight matrices. We try 5 different $\lambda$ values. Table 6 displays the outcomes.

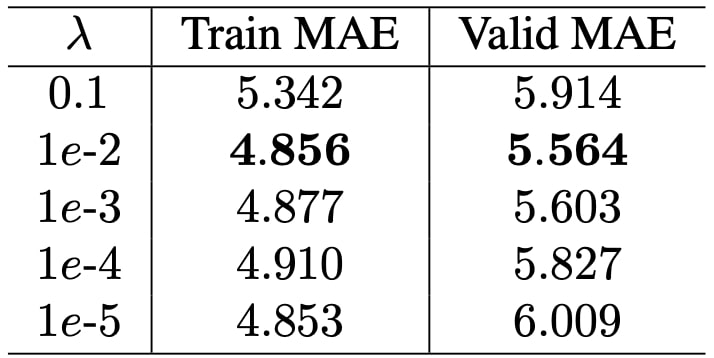

Table 6. Effect of weight decay factor (λ)

As it can be seen, very high rates degrade both the training and validation performance since it causes model to underfit. On the other hand, very low rates don’t add much to the performance. Usually, $1e-3$ or $1e-5$ is advised to be used in deep learning frameworks; however, $1e-2$ performed the best in our experiments. Therefore, we proceed with it.

7. Optimizer

We use Adam optimizer with default parameters in Tensorflow. We continue our experiments with finetuning batch size. At this point, we also applied early stopping scheme to prevent network overfitting the training data. We think that when batch size is changed and early stopping is applied, the previous best performed learning rate, which was 0.001, may also need to be updated. Therefore, we run the experiments by playing with the learning rate, batch size whilst early stopping scheme is on. Training process is early stopped when last 20 epochs’ validation MAE scores are not improved by 0.2. Inspection window size (20) is chosen in accordance with learning rate decay step. 0.2 is determined by manual inspection of the change of validation MAEs over epochs after saturation. Therefore, we did not fine-tune these parameters again in our experiments. Maximum number of epochs is set to 100. However, all of the experiments are early stopped. Table 7 shows the outcomes of experiments.

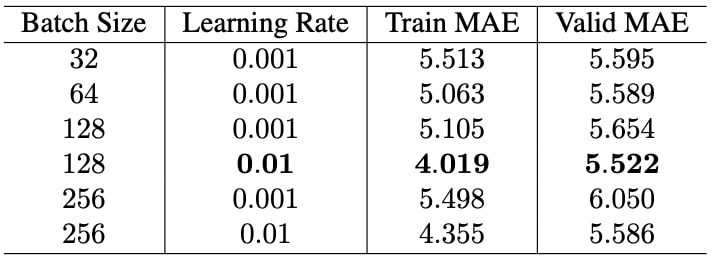

Table 7. Combined effect of batch size, learning rate and early stopping. Note that this time (different than all the previous chapters), training is performed till occurrence of early stop or reaching maximum number of epochs.

Note that best performing learning rate was initially found as 0.001 in chapter 5; however, it is replaced with 0.01 according to the Table 7. We believe that this because of the combined affect of batch size and early stopping scheme.

8. Test Results

Since we finalized our model selection using validation set, it is now time to test our model on the test set. Our model achieved 4.018 train MAE, 5.522 validation MAE, 5.568 test MAE score.

9. Code

In [1]:
import os
import numpy as np
import tensorflow as tf
import uuid
import mlflow
In [2]:
os.environ['CUDA_VISIBLE_DEVICES'] = '2'
session = tf.Session(config=tf.ConfigProto(gpu_options=tf.GPUOptions(allow_growth = True)))
# session = tf.InteractiveSession(config=tf.ConfigProto(gpu_options=tf.GPUOptions(allow_growth = True)))

MLflow settings

This is to keep track of metrics while the model trains on the GPU server.

In [4]:
experiment_path = 'experiments'

eid = str(uuid.uuid1())
mlflow.set_tag("eid", eid)

Create Filename & Label Lists

In [5]:
db_root = './UTKFace_downsampled'

test_filenames = []
test_labels = []

train_filenames = []
train_labels = []

val_filenames = []
val_labels = []

for subset in os.listdir(db_root):
    for f in os.listdir( os.path.join( db_root, subset)):
        if 'train' in subset:
            train_filenames.append(os.path.join(db_root, subset, f))
        elif 'validation' in subset:
                val_filenames.append(os.path.join(db_root, subset, f))
        elif 'test' in subset:
                test_filenames.append(os.path.join(db_root, subset, f))
            print('Subset {} is not recognized!'.format(subset))

assert len(train_filenames) == len(train_labels)
assert len(val_labels) == len(val_labels)
assert len(test_filenames) == len(test_labels)

train_size = len(train_filenames)
val_size = len(val_filenames)
test_size = len(test_filenames)

print('Training size:', train_size)
print('Validation size:', val_size)
print('Test size:', test_size)
Training size: 5400
Validation size: 2315
Test size: 1159

Define Hyperparameters

In [6]:
class Params():
    def __init__(self):
        self.params = {}
    def add_param(self, name, value):
        self.params[name] = value
In [7]:
Params_obj = Params()
params = Params_obj.params

Params_obj.add_param('batch_size', 128)
Params_obj.add_param('train_step_per_epoch', (train_size + params['batch_size'] - 1) // params['batch_size'])
Params_obj.add_param('val_step_per_epoch', (val_size + params['batch_size'] - 1) // params['batch_size'])
Params_obj.add_param('test_steps', (test_size + params['batch_size'] - 1) // params['batch_size'])

Params_obj.add_param('lr', 0.01)
Params_obj.add_param('epochs', 100)
Params_obj.add_param('lr_decay_step', 20 * params['train_step_per_epoch'])  # at each 20 epochs
Params_obj.add_param('lr_decay_rate', 0.1)                                  # divide current learning rate by 10
Params_obj.add_param('weight_decay_lambda', 0.01)

Params_obj.add_param('early_stop_epoch', 20)
Params_obj.add_param('early_stop_epsilon', 0.2)

Params_obj.add_param('model', 'baseline')

Log Hyperparameters for MLflow Setup

In [8]:
for param, value in params.items():
    mlflow.log_param(param, value)

Prepare tf.Dataset

In [9]:
def parse_function(filename, label):
    image_string = tf.read_file(filename)

    # Don't use tf.image.decode_image, or the output shape will be undefined
    image = tf.image.decode_jpeg(image_string, channels=1)

    image = tf.image.per_image_standardization(image)

    # This will convert to float values in [0, 1]
    image = tf.image.convert_image_dtype(image, tf.float32)

#     image = tf.image.resize_images(image, [64, 64])
    return image, label
In [10]:
def train_preprocess(image, label):
    image = tf.image.random_flip_left_right(image)
#     image = tf.image.random_brightness(image, max_delta = 5.1/255.0)
#     image = tf.image.random_saturation(image, lower=0.5, upper=1.5)

    # Make sure the image is still in [0, 1]
#     image = tf.clip_by_value(image, 0.0, 1.0)

    return image, label
In [11]:
with tf.device('/cpu:0'):
    # train
    train_ds = (, train_labels))
                .shuffle(buffer_size = len(train_filenames))
                .map(parse_function, num_parallel_calls=64)
                .map(train_preprocess, num_parallel_calls=64)

    # validation
    val_ds = (, val_labels))
                .map(parse_function, num_parallel_calls=64)
    test_ds = (,test_labels))
                .map(parse_function, num_parallel_calls=64)
In [12]:
train_iterator = train_ds.make_initializable_iterator()
train_init_op = train_iterator.initializer

val_iterator = val_ds.make_initializable_iterator()
val_init_op = val_iterator.initializer

test_iterator = test_ds.make_initializable_iterator()
test_init_op = test_iterator.initializer
In [13]:
X_train, y_train = train_iterator.get_next()
X_val, y_val = val_iterator.get_next()
X_test, y_test = test_iterator.get_next()

train_dic = {'images': X_train, 'labels': y_train, 'iterator_init_op': train_init_op}
val_dic = {'images': X_val, 'labels': y_val, 'iterator_init_op': val_init_op}
test_dic = {'images': X_test, 'labels': y_test, 'iterator_init_op': test_init_op}

Create the Model

In [14]:
def convBlock(inputs, num_kernels, kernel_size, name, reuse, regularizer=None, initializer=None, padding='same'):
    with tf.variable_scope(name, reuse=reuse):
        inputs = tf.layers.conv2d(inputs, num_kernels, kernel_size, kernel_regularizer=regularizer,
                                              kernel_initializer=initializer, padding=padding)
        inputs = tf.layers.batch_normalization(inputs, training=not reuse)
        inputs = tf.nn.relu(inputs)
    return inputs
In [15]:
def poolBlock(inputs, size, stride, name, reuse):
    with tf.variable_scope(name, reuse=reuse):
        return tf.layers.max_pooling2d(inputs, size, stride)
In [1]:
def projection_shortcut(inputs, filters_out, strides, regularizer, initializer, reuse):
    """This is the skip connection for the residual block.
    inputs = tf.layers.conv2d(inputs=inputs, filters=filters_out, kernel_size=1, strides=strides,
                              kernel_regularizer=regularizer, kernel_initializer=initializer, padding='same')
    return tf.layers.batch_normalization(inputs, training=not reuse)
In [17]:
def residual_model(input_dic, reuse=False):
    l2_regularizer = tf.contrib.layers.l2_regularizer(scale=params['weight_decay_lambda'])
    he_uniform = tf.contrib.layers.xavier_initializer() #tf.initializers.he_uniform() #tf.initializers.random_normal()

    with tf.variable_scope('model', reuse=reuse):
        out = input_dic["images"]

        shortcut = projection_shortcut(out, 32, 1, l2_regularizer, he_uniform, reuse)

        out = convBlock(out, 32, 3, 'conv1', reuse, l2_regularizer, he_uniform, 'same')
        out = convBlock(out, 32, 3, 'conv2', reuse, l2_regularizer, he_uniform, 'same')

        out += shortcut
        out = poolBlock(out, 2, 2, 'pool1', reuse)

        shortcut = projection_shortcut(out, 64, 1, l2_regularizer, he_uniform, reuse)

        out = convBlock(out, 64, 3, 'conv3', reuse, l2_regularizer, he_uniform, 'same')
        out = convBlock(out, 64, 3, 'conv4', reuse, l2_regularizer, he_uniform, 'same')

        out += shortcut
        out = poolBlock(out, 2, 2, 'pool2', reuse)

        shortcut = projection_shortcut(out, 128, 1, l2_regularizer, he_uniform, reuse)

        out = convBlock(out, 128, 3, 'conv5', reuse, l2_regularizer, he_uniform, 'same')
        out = convBlock(out, 128, 3, 'conv6', reuse, l2_regularizer, he_uniform, 'same')

        out += shortcut
        out = poolBlock(out, 2, 2, 'pool3', reuse)

        # assuming stride 1 in convolutions
        out_dim = 91 # convolutional are padding with 'same'
        out_dim /= 2**3  # due to 3 pooling with size 2, stride 2
        out_dim = int(out_dim) # reshape requires int

        out = tf.reshape(out, [-1, out_dim * out_dim * 128])

        with tf.variable_scope('fc1', reuse=reuse):
            out = tf.layers.dense(out, 1024, kernel_regularizer=l2_regularizer,
            out = tf.layers.batch_normalization(out, training=not reuse)
            out = tf.nn.relu(out)
            out = tf.layers.dropout(out, rate=0.3, training=not reuse)

        with tf.variable_scope('fc2', reuse=reuse):
            out = tf.layers.dense(out, 512, kernel_regularizer=l2_regularizer,
            out = tf.layers.batch_normalization(out, training=not reuse)
            out = tf.nn.relu(out)
            out = tf.layers.dropout(out, rate=0.5, training=not reuse)

        with tf.variable_scope('fc3', reuse=reuse):
            out = tf.layers.dense(out, 128, kernel_regularizer=l2_regularizer,
            out = tf.layers.batch_normalization(out, training=not reuse)
            out = tf.nn.relu(out)
            out = tf.layers.dropout(out, rate=0.6, training=not reuse)

        with tf.variable_scope('logits', reuse=reuse):
            logits = tf.layers.dense(out, 1, kernel_regularizer=l2_regularizer,

    return logits
In [18]:
def base_model(input_dic, reuse=False):
    l2_regularizer = tf.contrib.layers.l2_regularizer(scale=params['weight_decay_lambda'])
    he_uniform = tf.contrib.layers.xavier_initializer() #tf.initializers.he_uniform() #tf.initializers.random_normal()

    with tf.variable_scope('model', reuse=reuse):
        out = input_dic["images"]

        out = convBlock(out, 32, 5, 'conv1', reuse, l2_regularizer, he_uniform)
        out = convBlock(out, 64, 5, 'conv2', reuse, l2_regularizer, he_uniform)

        out = poolBlock(out, 2, 2, 'pool1', reuse)

        out = convBlock(out, 128, 5, 'conv3', reuse, l2_regularizer, he_uniform)
        out = convBlock(out, 256, 5, 'conv4', reuse, l2_regularizer, he_uniform)

        out = poolBlock(out, 2, 2, 'pool2', reuse)

        out = tf.reshape(out, [-1, 22 * 22 * 256])

        with tf.variable_scope('fc1', reuse=reuse):
            out = tf.layers.dense(out, 1024, kernel_regularizer=l2_regularizer,
            out = tf.layers.batch_normalization(out, training=not reuse)
            out = tf.nn.relu(out)
            out = tf.layers.dropout(out, rate=0.3, training=not reuse)

        with tf.variable_scope('fc2', reuse=reuse):
            out = tf.layers.dense(out, 512, kernel_regularizer=l2_regularizer,
            out = tf.layers.batch_normalization(out, training=not reuse)
            out = tf.nn.relu(out)
            out = tf.layers.dropout(out, rate=0.5, training=not reuse)

        with tf.variable_scope('fc3', reuse=reuse):
            out = tf.layers.dense(out, 128, kernel_regularizer=l2_regularizer,
            out = tf.layers.batch_normalization(out, training=not reuse)
            out = tf.nn.relu(out)
            out = tf.layers.dropout(out, rate=0.6, training=not reuse)

        with tf.variable_scope('logits', reuse=reuse):
            logits = tf.layers.dense(out, 1, kernel_regularizer=l2_regularizer,

    return logits
In [19]:
train_model = base_model(train_dic)
val_model = base_model(val_dic, reuse=True)
In [20]:
# Get the labels from the input data pipeline
labels = train_dic['labels']
labels = tf.cast(labels, tf.int64)
labels = tf.reshape(labels, [-1, 1])

# # Define the prediction as the argmax of the scores
# predictions = tf.argmax(train_model, 1)

# Define the loss
loss = tf.losses.mean_squared_error(labels=labels, predictions=train_model)
l2_loss = tf.losses.get_regularization_loss()
loss += l2_loss

val_labels = val_dic['labels']
val_labels = tf.cast(val_labels, tf.int64)
val_labels = tf.reshape(val_labels, [-1, 1])

val_loss = tf.losses.mean_squared_error(labels=val_labels, predictions=val_model)
In [21]:
global_step = tf.train.get_or_create_global_step()

# decayed_learning_rate = learning_rate * decay_rate ^ (global_step / decay_steps)
# if the argument staircase is True, then global_step / decay_steps is an integer division
learning_rate = tf.train.exponential_decay(params['lr'], global_step, params['lr_decay_step'],\
                                           params['lr_decay_rate'], staircase=True)

# Create an optimizer that will take care of the Gradient Descent
optimizer = tf.train.AdamOptimizer(learning_rate)

# Get batch norm update ops to run (they are not attached to the graph automatically)
batch_norm_update_ops = tf.get_collection(tf.GraphKeys.UPDATE_OPS)

# Create the training operation, ensure that batch_norm_update_ops are run first by
# adding a dependency to update the moving mean and variance
with tf.control_dependencies(batch_norm_update_ops):
    train_op = optimizer.minimize(loss, global_step=global_step)
In [22]:
# Define the different metrics
with tf.variable_scope("metrics"):
    metrics = {'Train MAE': tf.metrics.mean_absolute_error(labels=labels,
                                                           predictions=tf.cast(train_model, tf.int64)),
               'Train loss': tf.metrics.mean(loss)}

with tf.variable_scope("val_metrics"):
    val_metrics = {'Valid MAE': tf.metrics.mean_absolute_error(labels=val_labels,
                                                               predictions=tf.cast(val_model, tf.int64)),
                   'Valid loss': tf.metrics.mean(val_loss)}

# Group the update ops for the tf.metrics, so that we can run only one op to update them all
update_metrics_op =*[op for _, op in metrics.values()])

# Get the op to reset the local variables used in tf.metrics, for when we restart an epoch
metric_variables = tf.get_collection(tf.GraphKeys.LOCAL_VARIABLES, scope="metrics")
metrics_init_op = tf.variables_initializer(metric_variables)

update_val_metrics_op =*[op for _, op in val_metrics.values()])
val_metric_variables = tf.get_collection(tf.GraphKeys.LOCAL_VARIABLES, scope="val_metrics")
val_metrics_init_op = tf.variables_initializer(val_metric_variables)

# Summaries for training
_ = tf.summary.scalar('loss', loss)
_ = tf.summary.scalar('lr', learning_rate)
In [23]:
def test_model(sess):
    test_labels = test_dic['labels']
    test_labels = tf.cast(test_labels, tf.int64)
    test_labels = tf.reshape(test_labels, [-1, 1])

    test_model = base_model(test_dic, reuse=True)

    test_MSE = tf.losses.mean_squared_error(labels=test_labels, predictions=test_model)

    with tf.variable_scope("test_metrics"):
        test_metrics = {'Test MAE': tf.metrics.mean_absolute_error(labels=test_labels,
                                                                   predictions=tf.cast(test_model, tf.int64)),
                       'Test MSE': tf.metrics.mean(test_MSE)}
    update_test_metrics_op =*[op for _, op in test_metrics.values()])
    test_metric_variables = tf.get_collection(tf.GraphKeys.LOCAL_VARIABLES, scope="test_metrics")
    test_metrics_init_op = tf.variables_initializer(test_metric_variables)

    for i in range(params['test_steps']):

    test_metrics_values = {k: v[0] for k, v in test_metrics.items()}
    test_metrics_val =
    print('Test MAE:{:5f} Test MSE:{:5f}'.format(test_metrics_val['Test MAE'],\
                                                 test_metrics_val['Test MSE']))

    mlflow.log_metric('Test MAE', test_metrics_val['Test MAE'])
    mlflow.log_metric('Test MSE', test_metrics_val['Test MSE'])
In [24]:
global_init_op = tf.initializers.global_variables()
summary_op = tf.summary.merge_all()
early_stop_window = []

with session as sess:
# sess = session

    # For tensorboard (takes care of writing summaries to files)
    train_writer = tf.summary.FileWriter('summaries/train_summaries', sess.graph, flush_secs=60)
    val_writer = tf.summary.FileWriter('summaries/valid_summaries', sess.graph, flush_secs=60)

    for e in range(params['epochs']):
        # Run the initializer to reset the metrics to zero

        # Run dataset iterator ops to get them back to beginning

        # TRAINING
        for i in range(params['train_step_per_epoch']):
            _, loss_val, _, summ, global_step_val =
                [train_op, loss, update_metrics_op, summary_op, global_step])

            # Write summaries for tensorboard
            train_writer.add_summary(summ, global_step_val)

        # Get the values of the metrics
        metrics_values = {k: v[0] for k, v in metrics.items()}
        metrics_val =

        # VALIDATION
        for i in range(params['val_step_per_epoch']):

        val_metrics_values = {k: v[0] for k, v in val_metrics.items()}
        val_metrics_val =

        early_stop_window.append(val_metrics_val['Valid MAE'])

        # Add summaries manually to writer at global_step_val
        if val_writer is not None:
            for tag, val in val_metrics_val.items():
                summ = tf.Summary(value=[tf.Summary.Value(tag=tag, simple_value=val)])
                val_writer.add_summary(summ, global_step_val)

        print('Epoch {}:  Train MAE:{:5f} Train loss:{:5f}    Valid MAE:{:5f} Valid loss:{:5f}'.format(\
                e+1, metrics_val['Train MAE'], metrics_val['Train loss'],
                    val_metrics_val['Valid MAE'], val_metrics_val['Valid loss']))

        early_stop = False
        if len(early_stop_window) > params['early_stop_epoch']: # should be 1 more
            # check early stop condition
            for i in range(len(early_stop_window)-1):
                if abs(early_stop_window[i] - params['early_stop_epsilon']) > early_stop_window[-1]:
                early_stop = True
            early_stop_window = early_stop_window[1:]

        if early_stop:
            print('Early stopping at epoch {}...'.format(e+1))

    mlflow.log_metric('Train MAE', metrics_val['Train MAE'])
    mlflow.log_metric('Train MSE', metrics_val['Train loss'])
    mlflow.log_metric('Valid MAE', val_metrics_val['Valid MAE'])
    mlflow.log_metric('Valid MSE', val_metrics_val['Valid loss'])

Epoch 1:  Train MAE:20.411297 Train loss:1991.046387    Valid MAE:1259.859619 Valid loss:1764896.625000
Epoch 2:  Train MAE:10.703889 Train loss:1532.437866    Valid MAE:26.487257 Valid loss:1260.385376
Epoch 3:  Train MAE:9.626667 Train loss:1029.878052    Valid MAE:41.207344 Valid loss:1987.625610
Epoch 4:  Train MAE:9.241482 Train loss:740.336487    Valid MAE:9.526134 Valid loss:178.935898
Epoch 5:  Train MAE:8.351111 Train loss:537.834229    Valid MAE:12.176674 Valid loss:300.869141
Epoch 6:  Train MAE:7.971296 Train loss:414.931000    Valid MAE:9.428078 Valid loss:145.727356
Epoch 7:  Train MAE:7.981296 Train loss:355.460724    Valid MAE:10.682074 Valid loss:196.299362
Epoch 8:  Train MAE:7.783889 Train loss:321.166199    Valid MAE:8.124406 Valid loss:119.241493
Epoch 9:  Train MAE:7.592593 Train loss:279.926666    Valid MAE:8.238445 Valid loss:131.850967
Epoch 10:  Train MAE:7.785555 Train loss:287.949768    Valid MAE:8.635853 Valid loss:132.606308
Epoch 11:  Train MAE:8.225555 Train loss:343.818085    Valid MAE:8.597840 Valid loss:132.717575
Epoch 12:  Train MAE:7.445370 Train loss:257.690186    Valid MAE:7.517063 Valid loss:103.552048
Epoch 13:  Train MAE:7.375556 Train loss:241.968246    Valid MAE:9.789201 Valid loss:152.883820
Epoch 14:  Train MAE:7.274815 Train loss:232.593933    Valid MAE:9.085097 Valid loss:135.733521
Epoch 15:  Train MAE:7.161296 Train loss:215.261154    Valid MAE:8.233693 Valid loss:136.593948
Epoch 16:  Train MAE:7.235741 Train loss:216.430435    Valid MAE:7.382289 Valid loss:109.952538
Epoch 17:  Train MAE:7.195000 Train loss:221.343521    Valid MAE:7.975378 Valid loss:130.480179
Epoch 18:  Train MAE:7.120926 Train loss:216.361786    Valid MAE:6.735637 Valid loss:90.448166
Epoch 19:  Train MAE:7.210185 Train loss:219.821793    Valid MAE:9.175810 Valid loss:167.918594
Epoch 20:  Train MAE:7.097593 Train loss:230.474564    Valid MAE:10.431534 Valid loss:212.680374
Epoch 21:  Train MAE:6.640000 Train loss:200.561935    Valid MAE:7.790065 Valid loss:122.200119
Epoch 22:  Train MAE:6.115185 Train loss:169.788040    Valid MAE:6.866091 Valid loss:95.825981
Epoch 23:  Train MAE:5.804259 Train loss:149.882339    Valid MAE:6.585745 Valid loss:87.528709
Epoch 24:  Train MAE:5.555926 Train loss:133.458481    Valid MAE:6.642333 Valid loss:90.098656
Epoch 25:  Train MAE:5.529444 Train loss:126.913010    Valid MAE:6.639741 Valid loss:90.950165
Epoch 26:  Train MAE:5.214259 Train loss:116.650513    Valid MAE:6.321814 Valid loss:78.235672
Epoch 27:  Train MAE:5.375926 Train loss:115.293663    Valid MAE:7.498488 Valid loss:107.727798
Epoch 28:  Train MAE:5.086852 Train loss:107.349464    Valid MAE:6.322678 Valid loss:76.992523
Epoch 29:  Train MAE:5.119259 Train loss:104.626862    Valid MAE:6.132182 Valid loss:71.921135
Epoch 30:  Train MAE:4.995370 Train loss:101.218742    Valid MAE:6.749892 Valid loss:93.711975
Epoch 31:  Train MAE:5.078148 Train loss:102.952873    Valid MAE:6.694169 Valid loss:84.961250
Epoch 32:  Train MAE:5.110185 Train loss:102.591492    Valid MAE:5.958099 Valid loss:70.682434
Epoch 33:  Train MAE:4.975741 Train loss:97.579338    Valid MAE:6.066523 Valid loss:74.507233
Epoch 34:  Train MAE:4.902407 Train loss:97.007423    Valid MAE:6.179265 Valid loss:78.552574
Epoch 35:  Train MAE:4.990926 Train loss:96.613609    Valid MAE:5.896760 Valid loss:70.444679
Epoch 36:  Train MAE:4.930185 Train loss:97.732681    Valid MAE:6.054428 Valid loss:74.247147
Epoch 37:  Train MAE:4.937963 Train loss:94.472466    Valid MAE:5.827646 Valid loss:69.640892
Epoch 38:  Train MAE:4.818889 Train loss:93.053688    Valid MAE:6.004320 Valid loss:73.129913
Epoch 39:  Train MAE:4.820185 Train loss:90.994316    Valid MAE:6.051404 Valid loss:72.628609
Epoch 40:  Train MAE:4.810000 Train loss:91.016411    Valid MAE:5.969762 Valid loss:70.782661
Epoch 41:  Train MAE:4.577222 Train loss:86.106064    Valid MAE:5.759395 Valid loss:67.445992
Epoch 42:  Train MAE:4.650000 Train loss:85.949226    Valid MAE:5.715767 Valid loss:66.407860
Epoch 43:  Train MAE:4.464815 Train loss:82.292213    Valid MAE:5.705400 Valid loss:66.103027
Epoch 44:  Train MAE:4.488889 Train loss:81.503891    Valid MAE:5.660043 Valid loss:65.363716
Epoch 45:  Train MAE:4.384630 Train loss:79.482010    Valid MAE:5.638013 Valid loss:64.965576
Epoch 46:  Train MAE:4.404259 Train loss:80.493416    Valid MAE:5.617711 Valid loss:64.975853
Epoch 47:  Train MAE:4.355000 Train loss:77.720238    Valid MAE:5.618143 Valid loss:64.743958
Epoch 48:  Train MAE:4.239074 Train loss:75.670219    Valid MAE:5.547732 Valid loss:63.661621
Epoch 49:  Train MAE:4.278333 Train loss:75.696915    Valid MAE:5.560259 Valid loss:63.751644
Epoch 50:  Train MAE:4.271852 Train loss:74.469536    Valid MAE:5.565011 Valid loss:63.972599
Epoch 51:  Train MAE:4.062963 Train loss:70.818115    Valid MAE:5.539093 Valid loss:63.484974
Epoch 52:  Train MAE:4.150926 Train loss:71.317009    Valid MAE:5.567603 Valid loss:63.710289
Epoch 53:  Train MAE:4.150926 Train loss:72.047722    Valid MAE:5.568467 Valid loss:63.441540
Epoch 54:  Train MAE:4.190371 Train loss:71.461922    Valid MAE:5.545572 Valid loss:63.430676
Epoch 55:  Train MAE:4.178889 Train loss:71.956230    Valid MAE:5.599136 Valid loss:64.028008
Epoch 56:  Train MAE:4.125741 Train loss:69.731781    Valid MAE:5.663067 Valid loss:64.765816
Epoch 57:  Train MAE:4.086296 Train loss:67.734627    Valid MAE:5.550324 Valid loss:62.961220
Epoch 58:  Train MAE:4.030926 Train loss:66.832527    Valid MAE:5.580562 Valid loss:63.464188
Epoch 59:  Train MAE:4.101481 Train loss:68.541885    Valid MAE:5.549460 Valid loss:63.171864
Epoch 60:  Train MAE:4.011111 Train loss:66.109894    Valid MAE:5.519654 Valid loss:63.688770
Epoch 61:  Train MAE:4.013148 Train loss:67.308662    Valid MAE:5.520518 Valid loss:63.369495
Epoch 62:  Train MAE:3.920556 Train loss:65.723228    Valid MAE:5.514903 Valid loss:63.330322
Epoch 63:  Train MAE:4.018704 Train loss:67.461189    Valid MAE:5.522246 Valid loss:63.333084
Early stopping at epoch 63...
Test MAE:5.567731 Test MSE:59.052330
In [25]:
In [26]:
